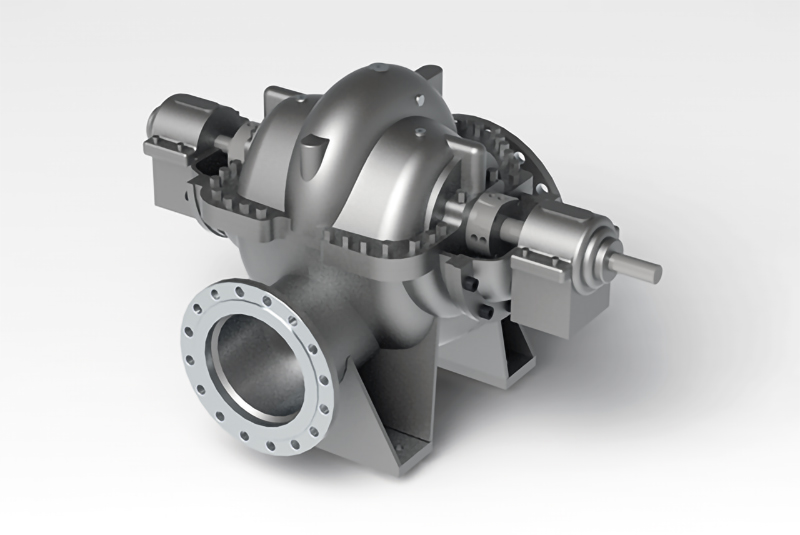

SBM Single/double stage axial split pump (SBMAPI610/BB1)
SBM Single/double stage axial split pump (SBMAPI610/BB1)
Model：API610 BB1
Standard：API610
◉ Parameters:
Capacities：Q～10000 m3/h
Heads：H～240 m
Temperatures：T-20 ℃ ～160 ℃
Pressure：P～ 2.5 MPa
◉ Feature:
Single-stage, double-suction, axially split, supported at both ends, horizontal, and foot-mounted; double-suction impeller makes the pump self-balance axial force, and the split structure makes it unnecessary to dismantle the pipeline and driver during pump maintenance. A variety of bearing structure designs can meet the requirements of different working conditions.
◉ Application:
Clean or slightly polluted liquids, general water supply, cooling water circulation, power plants' district heating, pulp and paper, pipelines, offshore platforms, etc.
-
