SBR Single/double stage radical split pump(API610/BB2)
SBR Single/double stage radical split pump(API610/BB2)
Model：API610 BB2
Standard：API610
◉ Parameters：
Capacities：Q～2270 m3/h
Heads：H～740 m
Temperatures：T-50 ℃ ～450 ℃
Pressure：P～10 MPa
◉ Feature

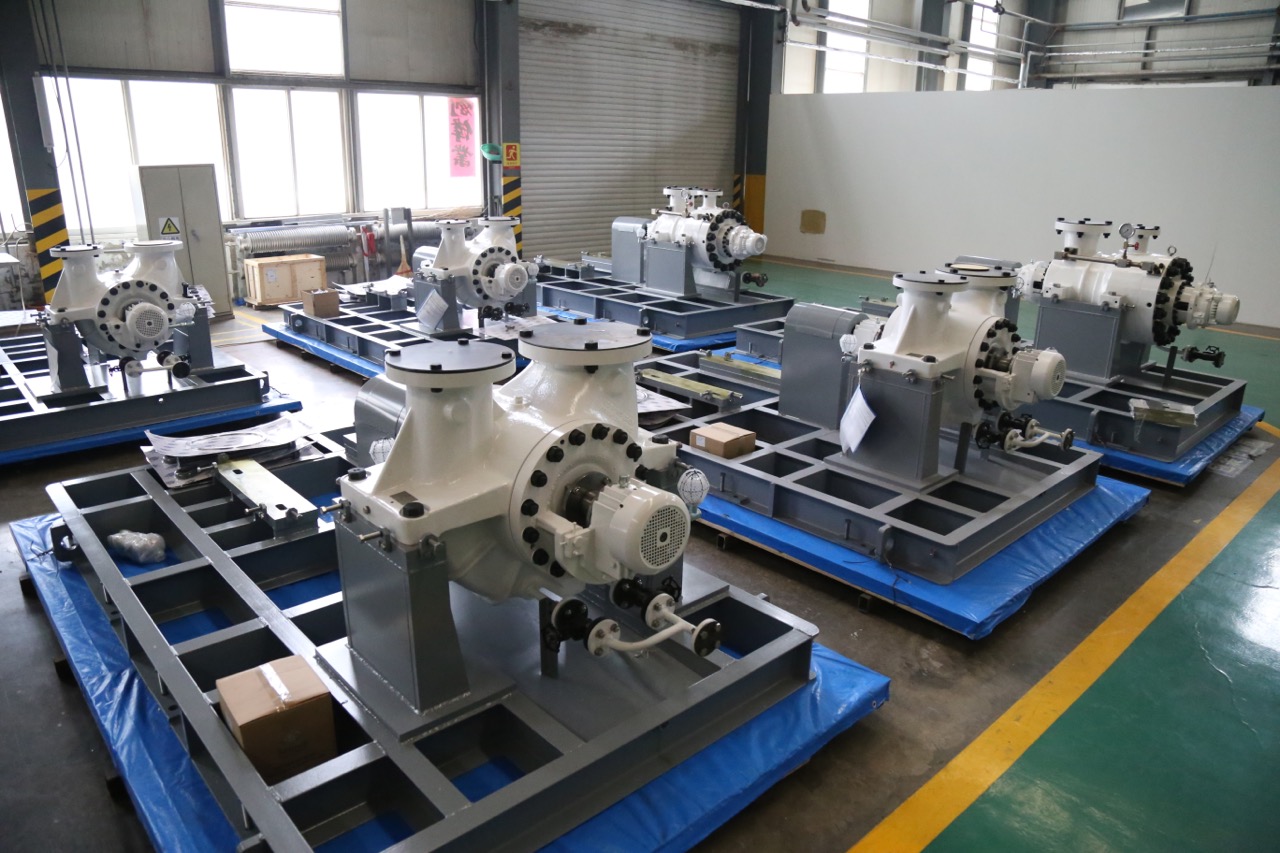

Single or two-stage, radially split, supported at both ends, horizontal, centerline installation, rigid shaft design for heavy workstations. The first stage impeller can adopt double suction impeller to reduce pump NPSHr, pump body double volute structure, radial force balance; API standard sealing cavity, suitable for various sealing flushing schemes. The pump inlet and outlet are vertically upwards.
◉ Application:
Clean or polluted, low temperature or high temperature, chemically neutral or corrosive liquids, refinery, petrochemical, chemical, coal chemical, power station, thermal power plant, offshore platform, pipeline and pressurization, etc.
-
