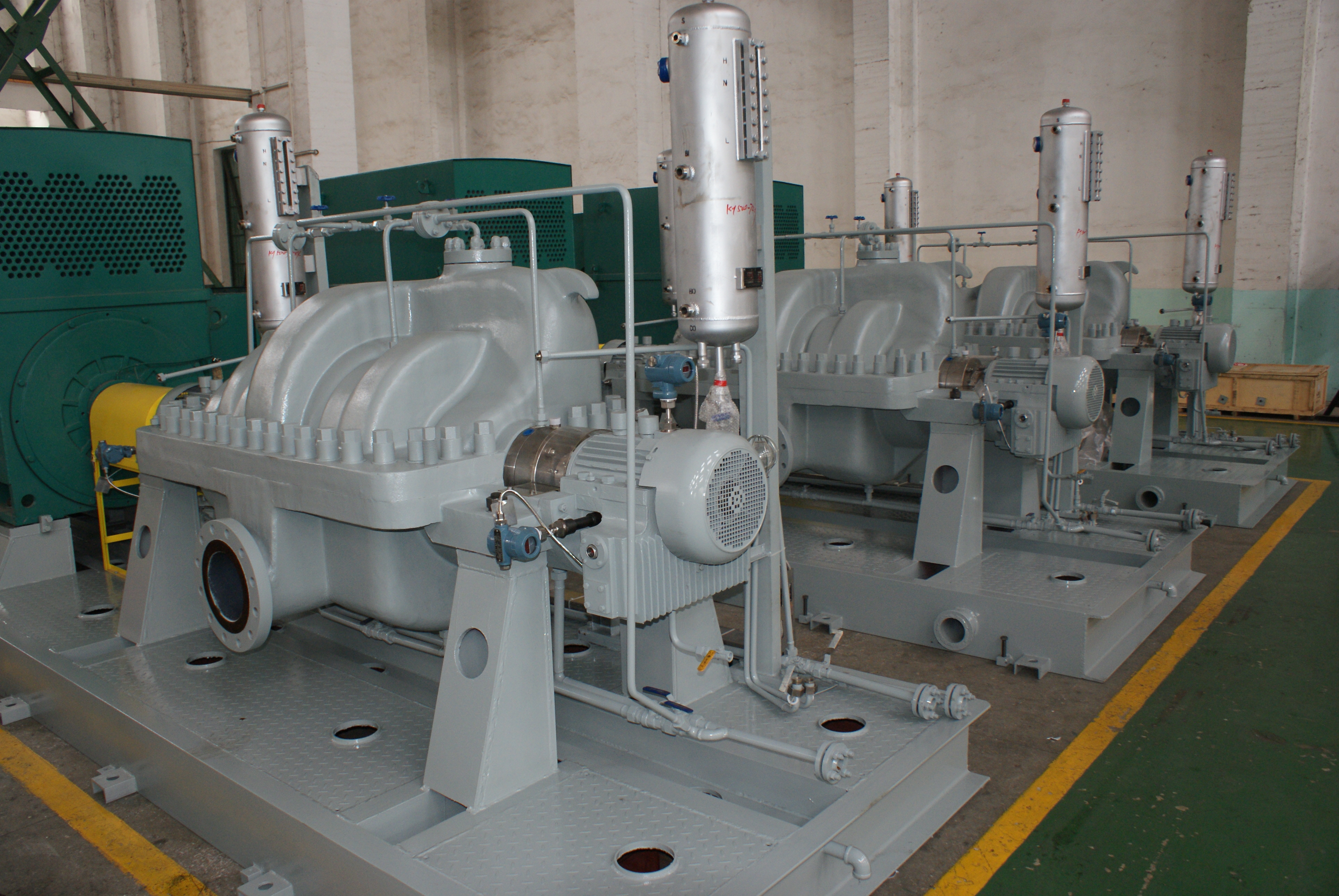

SBC Horizontal split multistage centrifugal pump (API610/BB3)
SBC Horizontal split multistage centrifugal pump (API610/BB3)
Model：API610 BB3
Standard：API610
◉ Parameters:
Capacities：Q25 ～2700 m3/h
Heads：H～2600 m
Temperatures：T-30 ℃ ～200 ℃
Pressure：P～ 31 MPa
◉ Feature:
Multi-stage, horizontal, axial split; centerline installation, support at both ends. The impeller is installed back-to-back to balance the axial force, the double volute of the pressurized water chamber is designed to balance the radial force, and the first-stage double-suction impeller is designed for low cavitation conditions.
◉ Application:
Crude oil, petroleum products, water, seawater and other liquids that are pure or contain a small amount of impurities; Crude oil, refinery, petrochemical, water injection, pipeline, boiler feed water, condensed water and metallurgy, etc.
-
SBM Single/double stage axial split pump (SBMAPI610/BB1)SBM Single/double stage axial split pump (SBMAPI610/BB1) -
SBT Multi-stage Barrel Casing Pump (API610 BB5)SBT Multi-stage Barrel Casing Pump (API610 BB5) -
SOG Vertical Inline Pump (API610/OH3)SOG Vertical Inline Pump (API610/OH3) -

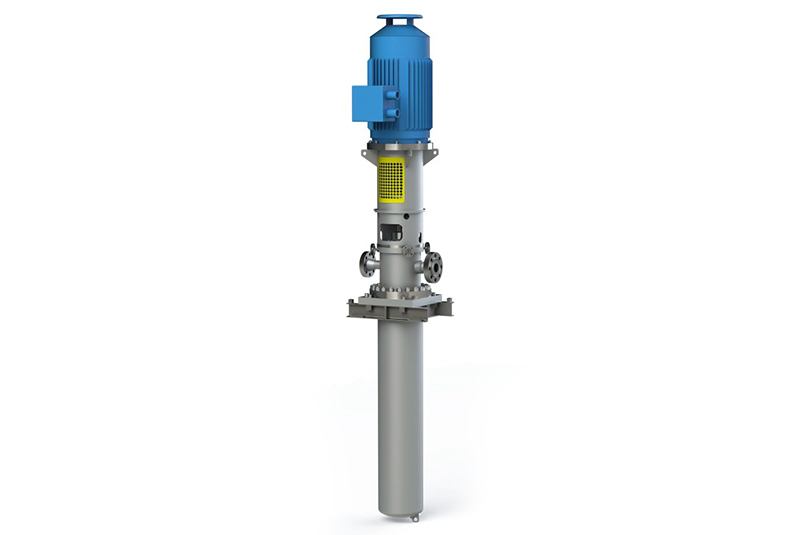

SVT Vertical barel pump (API610 VS6)SVT Vertical barel pump (API610 VS6)
